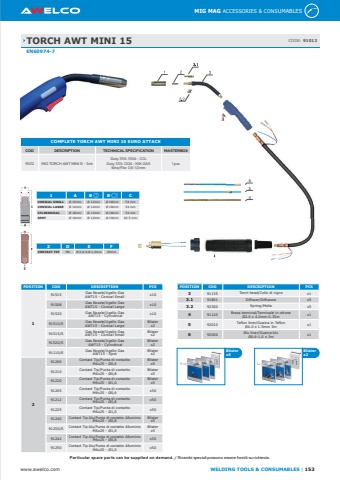

WELDING TOOLS & CONSUMABLES | 153MIG MAG ACCESSORIES & CONSUMABLESCOD DESCRIPTION TECHNICAL SPECIFICATION MASTERBOX91012 MIG TORCH AWT MINI 15 - 3mtDuty 35%: 150A - CO%u2082Duty 35%: 120A - MIX GASWire/Filo: 0,6-1,0mm1 pcs456EN60974-7TORCH AWT MINI 15 CODE: 91012COMPLETE TORCH AWT MINI 15 EURO ATTACKBlisterx5Blisterx2COD DESCRIPTION PCS91515 Gas Nozzle/Ugello GasAWT15 - Conical Small x1091508 Gas Nozzle/Ugello GasAWT15 - Conical Large x1091520 Gas Nozzle/Ugello Gas AWT15 - Cylindrical x1091510/S Gas Nozzle/Ugello GasAWT15 - Conical LargeBlisterx291515/S Gas Nozzle/Ugello GasAWT15 - Conical SmallBlister x291520/S Gas Nozzle/Ugello Gas AWT15 - CylindricalBlister x291110/S Gas Nozzle/Ugello GasAWT15 - SpotBlister x291200 Contact Tip/Punta di contattoM6x25 - %u00d80,6Blister x591210 Contact Tip/Punta di contattoM6x25 - %u00d80,8Blister x591220 Contact Tip/Punta di contattoM6x25 - %u00d81,0Blister x591205 Contact Tip/Punta di contattoM6x25 - %u00d80,6 x5091212 Contact Tip/Punta di contattoM6x25 - %u00d80,8 x5091225 Contact Tip/Punta di contattoM6x25 - %u00d81,0 x5091240 Contact Tip Alu/Punta di contatto AlluminioM6x25 - %u00d80,8Blister x591250/S Contact Tip Alu/Punta di contatto AlluminioM6x25 - %u00d81,0Blister x591242 Contact Tip Alu/Punta di contatto AlluminioM6x25 - %u00d80,8 x5091250 Contact Tip Alu/Punta di contatto AlluminioM6x25 - %u00d81,0 x50POSITION12Particular spare parts can be supplied on demand. / Ricambi speciali possono essere forniti su richiesta.COD DESCRIPTION PCS91135 Torch head/Collo di cigno x191801 Diffuser/Diffusore x592300 Spring/Molla x591120 Brass terminal/Terminale in ottone%u00d82.0 x 4.0mm 0.35m x192010 Teflon liner/Guaina in Teflon%u00d84.0 x 1.5mm 3m x192000 Blu liner/Guaina blu%u00d80.6-1.0 x 3m x1POSITION33.13.24561 A B B CCONICAL SMALL %u00d8 10mm %u00d8 12mm %u00d8 18mm 54 mmCONICAL LARGE %u00d8 14mm %u00d8 12mm %u00d8 18mm 54 mmCYLINDRICAL %u00d8 18mm %u00d8 12mm %u00d8 18mm 54 mmSPOT %u00d8 19mm %u00d8 12mm %u00d8 19mm 62.5 mm2 D E FCONTACT TIP M6 %u00d8 0,6-0,8-1,0mm 25mmwww.awelco.com
