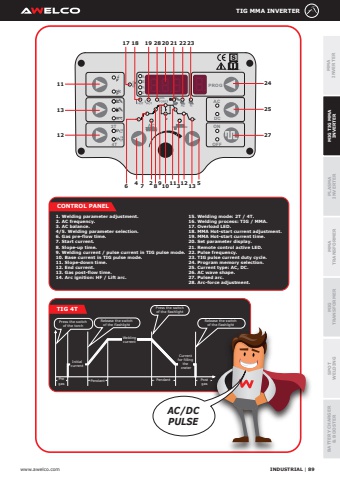

INDUSTRIAL | 89MMA INVERTERBATTERY CHARGER & BOOSTER MIG TRANSFORMER MMA TRANSFORMER PLASMA INVERTER SPOT WELDING MMA INVERTER MIG TIG MMA INVERTERTIG MMA INVERTERACASHZACPROGDCONOFF2T4T8.8.8. 8. 1113126 4 7 2 89101131213 527252417 18 19 28 20 21 2223CONTROL PANEL1. Welding parameter adjustment.2. AC frequency.3. AC balance.4/5. Welding parameter selection.6. Gas pre-flow time.7. Start current.8. Slope-up time.9. Welding current / pulse current in TIG pulse mode.10. Base current in TIG pulse mode.11. Slope-down time.12. End current.13. Gas post-flow time.14. Arc ignition: HF / Lift arc.15. Welding mode: 2T / 4T.16. Welding process: TIG / MMA.17. Overload LED.18. MMA Hot-start current adjustment.19. MMA Hot-start current time.20. Set parameter display.21. Remote control active LED.22. Pulse frequency.23. TIG pulse current duty cycle.24. Program memory selection.25. Current type: AC, DC.26. AC wave shape.27. Pulsed arc.28. Arc-force adjustment.TIG 4TPress the switchof the torchRelease the switchof the flashlightPress the switchof the flashlightRelease the switchof the flashlightCurrent for filling the craterWeldingcurrentInitialcurrentPregasPendant Pendant PostgasAC/DCPULSEwww.awelco.com
