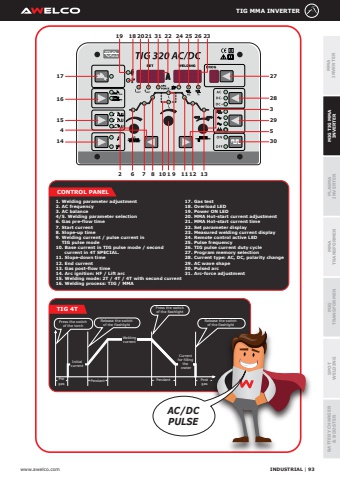

INDUSTRIAL | 93MMA INVERTERBATTERY CHARGER & BOOSTER MIG TRANSFORMER MMA TRANSFORMER PLASMA INVERTER SPOT WELDING MMA INVERTER MIG TIG MMA INVERTERTIG MMA INVERTERCONTROL PANEL1. Welding parameter adjustment2. AC frequency3. AC balance4/5. Welding parameter selection6. Gas pre-flow time7. Start current8. Slope-up time9. Welding current / pulse current in TIG pulse mode10. Base current in TIG pulse mode / second current in 4T SPECIAL.11. Slope-down time12. End current13. Gas post-flow time14. Arc ignition: HF / Lift arc15. Welding mode: 2T / 4T / 4T with second current16. Welding process: TIG / MMA17. Gas test18. Overload LED19. Power ON LED20. MMA Hot-start current adjustment21. MMA Hot-start current time22. Set parameter display23. Measured welding current display24. Remote control active LED25. Pulse frequency26. TIG pulse current duty cycle27. Program memory selection28. Current type: AC, DC, polarity change29. AC wave shape30. Pulsed arc31. Arc-force adjustment8.8.8. 8.8.8. 8. 1716154146 7 8 10 9 1112 1330529282719 18 2021 31 22 24 25 26 232 13TIG 4TPress the switchof the torchRelease the switchof the flashlightPress the switchof the flashlightRelease the switchof the flashlightCurrent for filling the craterWeldingcurrentInitialcurrentPregasPendant Pendant PostgasAC/DCPULSEwww.awelco.com
