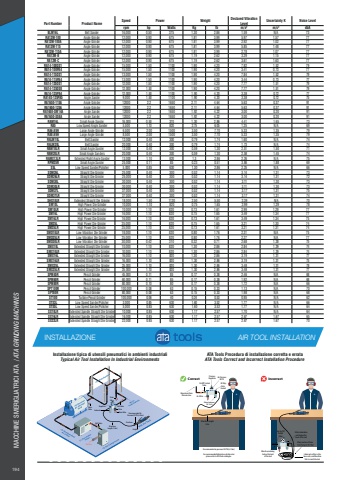

MACCHINE SMERIGLIATRICI ATA / ATA GRINDING MACHINES194Part Number Product Name Speed Power Weight Declared Vibration Level Uncertainty K Noise Levelrpm hp Watts Kg lb m/s%u00b2 m/s%u00b2 dbABLM16L Belt Sander 16,000 0.50 375 1.30 2.86 1.59 N/A 73RA12M-100 Angle Grinder 12,000 0.90 675 1.81 3.99 5.97 1.57 77RA12M-100A Angle Grinder 12,000 0.90 675 1.81 3.99 2.92 1.02 77RA12M-115 Angle Grinder 12,000 0.90 675 1.81 3.99 5.85 1.48 77RA12M-115A Angle Grinder 12,000 0.90 675 1.81 3.99 2.78 1.07 77RA12M-B Angle Grinder 12,000 0.90 675 1.19 2.62 3.29 1.15 77RA12M-C Angle Grinder 12,000 0.90 675 1.19 2.62 3.61 1.63 77RA14-100DS1 Angle Grinder 15,000 1.50 1100 1.90 4.20 7.82 1.52 79RA14-100PA4 Angle Grinder 15,000 1.50 1100 1.90 4.20 3.41 0.73 77RA14-115DS1 Angle Grinder 13,000 1.50 1100 1.90 4.20 7.84 1.52 79RA14-115PA4 Angle Grinder 13,000 1.50 1100 1.90 4.20 3.44 0.73 77RA14-125DS1 Angle Grinder 12,000 1.50 1100 1.90 4.20 7.77 1.51 79RA14-125DS8 Angle Grinder 12,000 1.50 1100 1.90 4.20 7.77 1.51 79RA14-125PA4 Angle Grinder 12,000 1.50 1100 1.90 4.20 3.38 0.72 77RA14S-125PA5 Angle Sander 9,000 1.50 1100 1.90 4.20 3.38 0.72 75RA1650-115A Angle Grinder 12000 2.2 1650 2.11 4.64 5.63 0.37 91RA1650-125A Angle Grinder 12000 2.2 1650 2.11 4.64 5.63 0.37 91RA1650-SM14A Angle Sander 12000 2.2 1650 1.92 4.22 3.00 0.20 91RA1650-S58A Angle Sander 12000 2.2 1650 1.92 4.22 3.00 0.20 91RAM16L Small Angle Sander 16,000 0.50 370 1.30 2.86 4.41 1.65 73RA5 Low Speed Angle Sander 5,500 1.10 820 2.75 6.05 1.25 N/A 69RA6 AVH Large Angle Grinder 6,500 2.00 1500 3.50 7.70 5.33 1.35 79RA8 AVH Large Angle Grinder 8,500 2.00 1500 3.50 7.70 5.33 1.35 79RALM10L Belt Sander 12,000 0.40 300 0.79 1.74 1.60 N/A 74RALM20L Belt Sander 20,000 0.40 300 0.79 1.74 1.73 N/A 74RAM10LR Small Angle Sander 12,000 0.40 300 0.59 1.30 2.51 1.50 71RAM20LR Small Angle Sanders 20,000 0.40 300 0.59 1.30 2.58 1.45 74RAMX13LR Extended Right Angle Sander 13,000 1.10 820 1.3 2.86 2.26 N/A 75RPM25R Small Angle Sander 25,000 0.11 85 0.23 0.51 3.86 1.88 69S5L Low Speed Sander/Polisher 5,000 0.85 630 1.30 2.86 2.25 N/A 66SDM26L Straight Die Grinder 25,000 0.40 300 0.52 1.14 3.14 1.31 73SDM26LR Straight Die Grinder 25,000 0.40 300 0.52 1.14 3.14 1.31 72SDM30L Straight Die Grinder 30,000 0.40 300 0.52 1.14 3.11 1.30 73SDM30LR Straight Die Grinder 30,000 0.40 300 0.52 1.14 3.11 1.30 73SDM37L Straight Die Grinder 37,000 0.40 300 0.52 1.14 3.17 1.31 75SDM37LR Straight Die Grinder 37,000 0.40 300 0.52 1.14 3.17 1.31 74SHG18LR Extended Straight Die Grinder 18,000 1.50 1120 2.50 5.50 2.39 N/A 70SM10L High Power Die Grinder 10,000 1.10 820 0.75 1.65 2.99 1.29 78SM10LR High Power Die Grinder 10,000 1.10 820 0.73 1.61 2.99 1.29 77SM16L High Power Die Grinder 16,000 1.10 820 0.75 1.65 3.49 1.34 77SM16LR High Power Die Grinder 16,000 1.10 820 0.73 1.61 3.49 1.34 75SM25L High Power Die Grinder 25,000 1.10 820 0.75 1.65 3.21 1.30 74SM25LR High Power Die Grinder 25,000 1.10 820 0.73 1.61 3.21 1.31 74SMD18LR Low Vibration Die Grinder 18,000 1.10 820 0.80 1.76 2.31 N/A 75SMD25LR Low Vibration Die Grinder 25,000 1.10 820 0.80 1.76 2.27 N/A 77SMD30LR Low Vibration Die Grinder 30,000 0.42 310 0.32 0.71 2.68 1.28 75SMX10L Extended Straight Die Grinder 10,000 1.10 820 1.30 2.86 2.84 1.29 74SMX10LR Extended Straight Die Grinder 10,000 1.10 820 1.30 2.86 2.84 1.29 74SMX16L Extended Straight Die Grinder 16,000 1.10 820 1.30 2.86 3.19 1.31 77SMX16LR Extended Straight Die Grinder 16,000 1.10 820 1.30 2.86 3.19 1.31 75SMX25L Extended Straight Die Grinder 25,000 1.10 820 1.30 2.86 3.48 1.31 78SMX25LR Extended Straight Die Grinder 25,000 1.10 820 1.30 2.86 3.48 1.31 77SPM45R Pencil Grinder 45,000 0.11 85 0.17 0.38 2.46 N/A 68SPM60R Pencil Grinder 60,000 0.11 85 0.17 0.38 1.92 N/A 68SPM80R Pencil Grinder 80,000 0.10 80 0.17 0.38 1.72 N/A 66SPT100R Pencil Grinder 100,000 0.08 63 0.15 0.33 1.13 N/A 70SPT80R Pencil Grinder 80,000 0.08 63 0.15 0.33 1.98 N/A 68ST100 Turbine Pencil Grinder 100,000 0.06 40 0.24 0.53 0.95 N/A 62STX3L Low Speed Sander/Polisher 3,000 0.85 630 1.60 3.52 1.77 N/A 66STX5L Low Speed Sander/Polisher 5,000 0.85 630 1.60 3.52 1.77 N/A 64SX10LR Extended Spindle Straight Die Grinder 10,000 0.85 630 1.17 2.57 1.70 N/A 64SX16LR Extended Spindle Straight Die Grinder 16,000 0.85 630 1.17 2.57 2.67 1.67 65SX22LR Extended Spindle Straight Die Grinder 22,000 0.85 630 1.17 2.57 2.67 1.67 70INSTALLAZIONE AIR TOOL INSTALLATIONAir FlowBall ValveBall ValveDrainValveRegulatorFilter LubricatorMax HoseLength (3.0m)Recommended Air Pressure 90 PSI (6.3bar)CouplerDrain ValveDrainValveOverhosePressureRegulatorAir Pressure90 PSI IncorrectCorrectAir FlowBall ValveBall ValveDrainValveRegulatorFilter LubricatorMax HoseLength (3.0m)Recommended Air Pressure 90 PSI (6.3bar)CouplerDrain ValveDrainValveOverhoseRecommended air pressure 90 PSI (6.3 bar)For recommended lubrication oil drip ratesplease refer to ATA Tools catalogue Max Hose Length3.0m AIR FLOWAir FilterPressure RegulatorOil DripRateControlValveDrop down fromthe main lineMotor Lubricant Oil 10 cStAir Pressure90 PSI IncorrectControlValveFilter Lubricationunit below thelevel of the toolMain line running below the levelof the tool Lubricant settles in thehose coils, and therefore fails to reach the toolMany meters of looseCorrectInstallazione tipica di utensili pneumatici in ambienti industriali Typical Air Tool Installation In Industrial EnvironmentsATA Tools Procedura di installazione corretta e errataATA Tools Correct and Incorrect Installation Procedure
